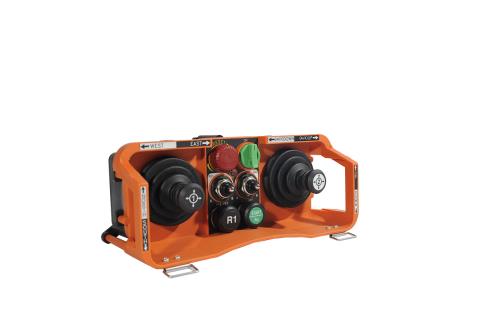

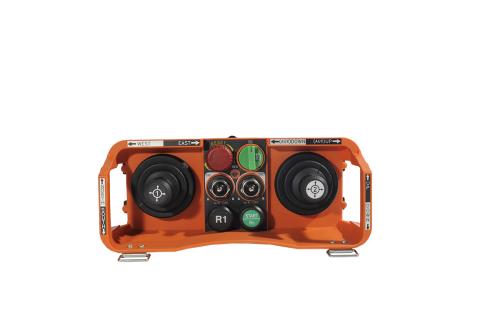

TRANSMITTER UNIT:
1.L x W x H: 230 x 95 x 110 mm
2.Weight: 870g (w/batteries)
3.Power: 4 AA size batteries.

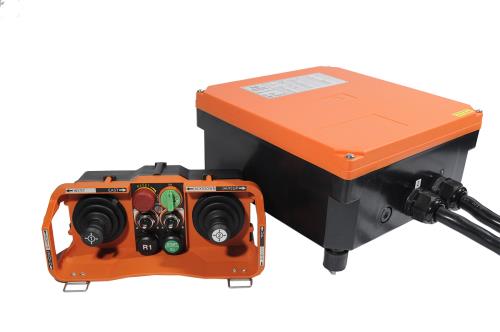

RECEIVER UNIT:
1.L x W x H: 253 x 267 x 150 mm
2.Weight: 2400g (exclude wire cable)

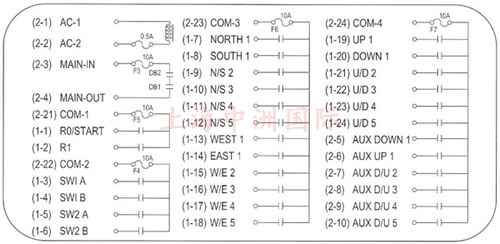

3.Contact: Max. 40-relay outputs (programmable)
4.Input Voltage: 24 / 48 / 110 / 220 / 380 VAC;14~ 40VDC
SPECIFICATION:
1.Frequency Control: Crystal.
2.I.D. Code: 2; more than 4 billion sets (set by factory, never be repeated)
3.Operating Temperature: -45℃ ~ +80℃
4.Operation Range: Up to 100 Meters
5.Hamming Distance : ≧ 4
6.3-stage power indicator.
7.One axis of joystick could program with maximum 16 relay outputs
8.Structure: Nylon + Glass Fiber.
9.Shock resistance.
10.Function programmable.
