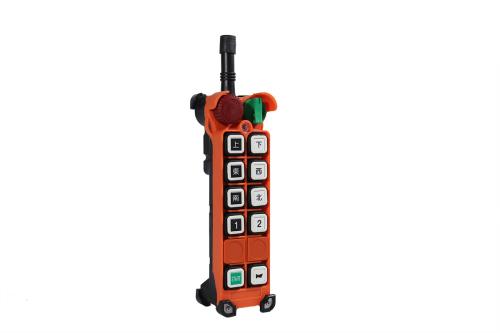

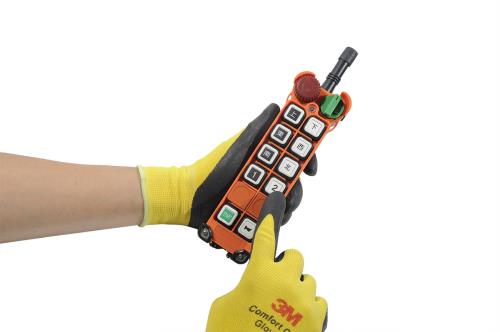

Transmitter: 186 x 61 x 51 to about 265g (without batteries)
Three-level indicator

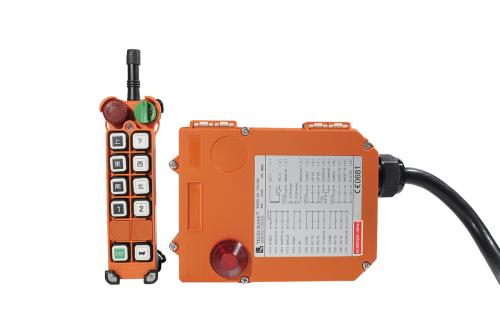

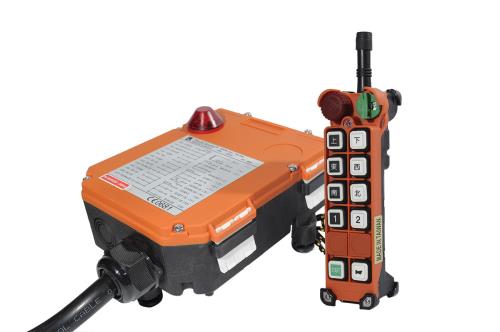

Receiver: 200 x 162 x 107 about 1550g (without cable)
AC 12/24/36/48/110/220 / 380V, DC 12/24 / 48V, (output passive switch signal)
Operating distance: Adjustable
Protection: IP65 waterproof and dustproof
Frequency range: 433.05MHz ~ 434.79MHz
Power consumption: DC6V, recommend choose 2500ma or more rechargeable batteries
Security: Hamming code, watchdog, comes with no additional purchase installation of alarm
Nylon glass fiber to prevent damage and fading caused by the strong collision: shell material.
Maintenance: 100% complete hardware / software completely consistent, easy to maintain and cost savings
Function Setting: You can set a variety of key functions (Widows9x / XP / Vista / 7/8) via the computer software to meet various technical requirements
F25-8S | F25-8D
- Cat.4/Cat.3 EN ISO 13849-1
- Comes With Alarm
- Output nodes detection
- F25-8S:8 Single Steps Buttons
- F25-8D:8 Double Steps Buttons
- Paid matching plug Easy to maintain
Description

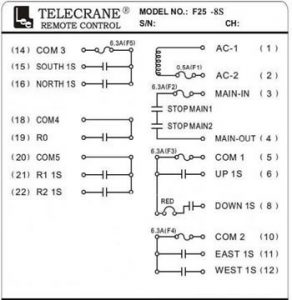

WIRE COLOR F25-8S
WIRE COLOR F25-8S

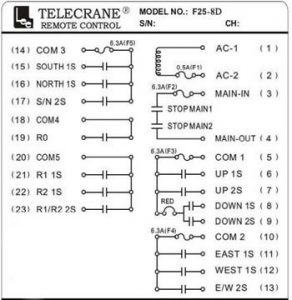

WIRE COLOR F25-8D
WIRE COLOR F25-8D
