Transmitter: 186 x 61 x 51mm approximately 255g (without batteries)
Three-level indicator
Receiver: 200 x 162 x 107mm about 1220g (without cable)
AC 12/24/36/48/110/220 / 380V, DC 12/24 / 48V, (output passive switch signal)
Operating distance: 100M
Protection: IP65 waterproof and dustproof
Center Band: VHF315MHz, UHF433MHz
Security: Hamming code, watchdog group 4.3 billion unique identifier (32 yuan)
Nylon glass fiber to prevent damage and fading caused by the strong collision: shell material.
Maintenance: 100% complete hardware / software completely consistent, easy to maintain and cost savings
Power consumption: DC3V, low power (two AA-size alkaline battery Average life of up to 2 months)
Function Setting: You can set a variety of key functions (Widows9x / XP / Vista / 7/8/10) via the computer software to meet various technical requirements

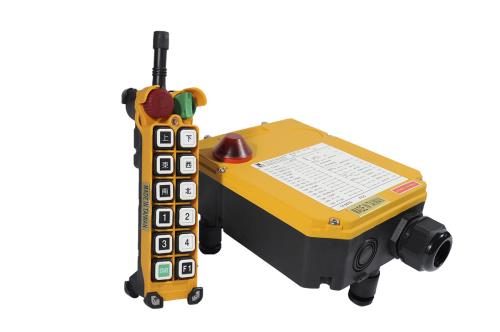

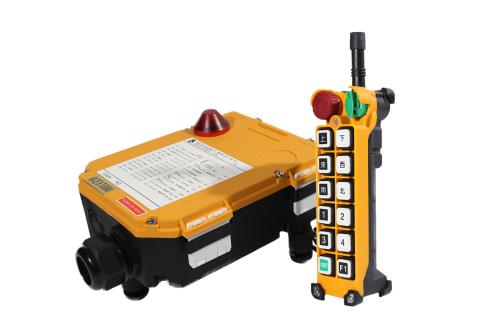

F24-12S | F24-12D
- Meets four safety regulations
- With warning lights
- Free replacement key stickers

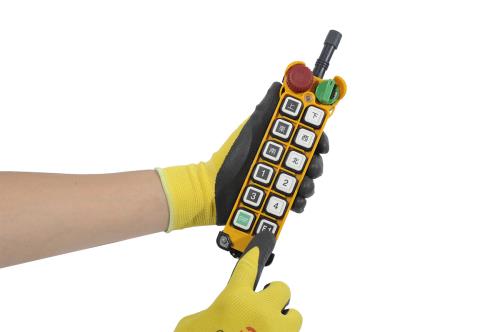

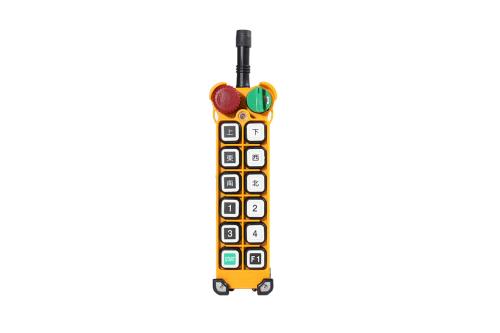

- F24-12S:11 Single Steps Buttons+1 Start （R0）+1 EMS +1 Rotary Key Switch
- F24-12D:11Double Steps Buttons+1 Start （R0）+1 EMS +1 Rotary Key Switch
Description

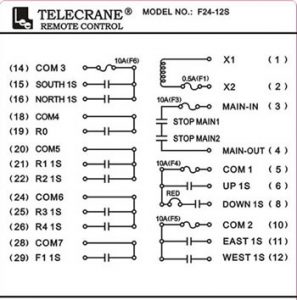

WIRE COLOR F24-12S
WIRE COLOR F24-12S

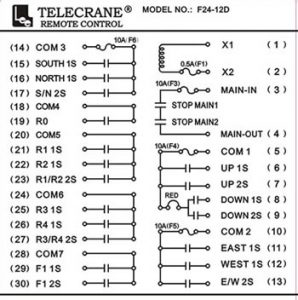

WIRE COLOR F24-12D
WIRE COLOR F24-12D
