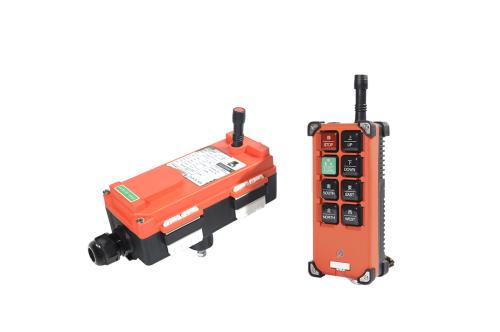

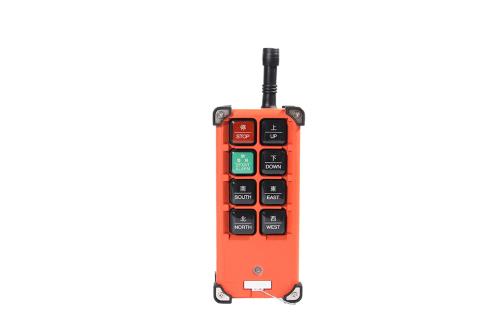

The transmitter 164 x 75 x 46mm about 380 (including battery)
Three-level indicator
Receiver 185x 85 x 85mm approximately 550g (without cable)
AC 12/24/36/48/110/220 / 380V, DC 12/24 / 48V, (output passive switch signal)
Operating distance: 100M
Protection: IP65 waterproof and dustproof
Center Band: VHF315MHz, UHF433MHz
Security: Hamming code, watchdog group 4.3 billion unique identifier (32 yuan)
Nylon glass fiber to prevent damage and fading caused by the strong collision: shell material.
Maintenance: 100% complete hardware / software completely consistent, easy to maintain and cost savings
Power consumption: DC3V, low power (two AA-size alkaline battery Average life of up to 2 months)
Function Setting: You can set a variety of key functions (Widows9x / XP / Vista / 7/8/10) via the computer software to meet various technical requirements
F21-4SB | F21-E1B
- There’s too much about this …
- Low-end Economy
- Impact-resistant design
- Function：6 Single Steps Buttons+1 Stop +1 Start+1 Key
- F21-4SB: “North and South” is unavailable
Description

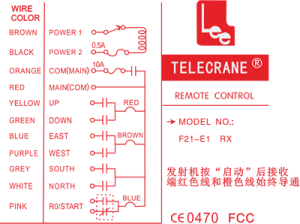

WIRE COLOR F21-E1B
WIRE COLOR F21-E1B

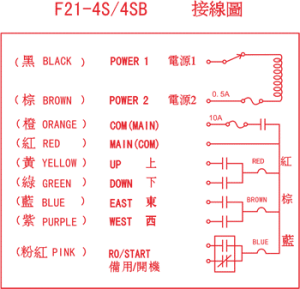

WIRE COLOR F21-4SB
WIRE COLOR F21-4SB
