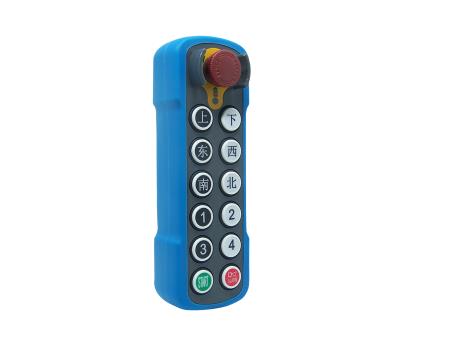

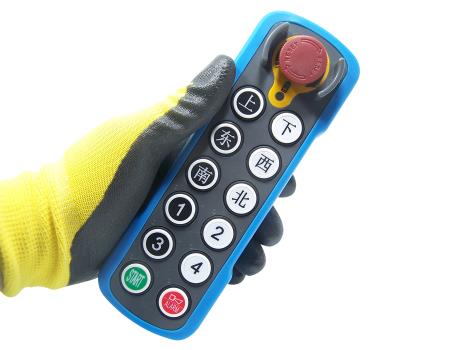

Transmitter:
LED indicator status: operation indicator, low power yellow light is always on
Size: 180 * 60 * 52 mm
Weight: about 220g
Antenna: built in
Key, emergency stop: compact, mushroom head type
Enclosure, protection class: engineering plastics, IP65
Battery: gold-plated 850mAh lithium battery
Charging time: 50 minutes
Continuous operation: 80 hours
Frequency bands: 310-340mhz, 415-450mhz, 850-886mhz
Working temperature range – 35 ° ~ + 85 ℃
Receiving system:
LED indicator light status: visible status display
Emergency stop: double relay (some machines)
Size: 200 * 153 * 56 mm
Weight: about 600g
Alarm bell: 95 db
Antenna: built in — cannot be installed in the sealed metal control cabinet (external: such as in explosion proof)
Enclosure, protection class: engineering plastics, IP65
Relay capacity: fully sealed 10A/250V
Power supply: dc12v-48v, AC36V, 48V, 110V, 220V, 380V, part of the adaptive voltage of the machine
Power consumption: 5 w
Working temperature range – 35 ° ~ + 85 ℃
Installation accessories: embedded installation (optional shock absorbing installation)
Cable, terminal: 1.5m, European style (optional quick connector)
